800W LED Floodlight

800W LED Flood Light with 5-10 times brighter than conventional led lamps.
500w directly replace 1500-2000w metal halide.
Premium Precise Optical Lighting System.
95% high efficiency.
Low flicker rate less than 0.2%, special design for stadium HDTV

Add to quote

SKU： 800w-led-floodlight 分类： Other Products

Source: https://www.oakled.com/product/800w-led-floodlight/

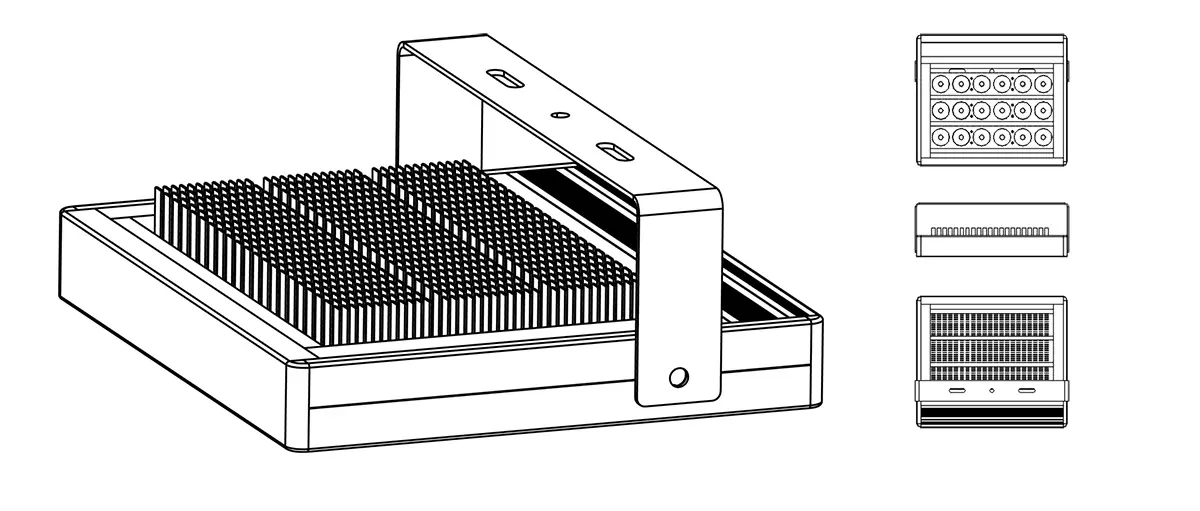

OAK-FL-Smart-800W
How to design the thermal system is the key of high power led flood light.
The unique thermal system design of OAK LED Flood Lights depends on the following main aspects:
1. Adopting Cree COB chips from USA original, and the COB package of LEDs shortens the cooling channel, increases the cooling area and reduces the thermal resistance, thus improving the thermal performance of LEDs and extending the lifespan of LEDs.
2. Complying in the passive cooling principle, using high pure aluminum heat sink to make the special cooling channel design, transferring the heat quickly from different directions through air gaps.
3. Providing the customized lamp structural design to transfer the heat produced from the chips inside to the heat sinks directly, so ensuring that the LEDs working stably, extending the lifespan of LEDs and lowering the speed of light decay.
So this unique thermal system design can help our LED flood lights running in better environment and extending the lifespan over 100,000 hours.
MN
Power
(W)
Size
(mm)
Efficiency
Beam Angle
(degree)
Color
Temperature
Dimming
Options
OAK-FL-100W-Smart
100
318x255x70
170lm/w
15, 25, 40,
60, 90, 120
2700-6500K
PWM
DALI
DMX
Zigbee
Manual
OAK-FL-150W-Smart
150
318x320x70
OAK-FL-200W-Smart
200
418x320x70
OAK-FL-300W-Smart
300
468x436x70
OAK-FL-400W-Smart
400
568x436x70
OAK-FL-500W-Smart
500
568x501x70
OAK-FL-600W-Smart
600
568x566x70
OAK-FL-720W-Smart
720
668x566x70
OAK-FL-800W-Smart
800
668x631x70
OAK-FL-1000W-Smart
1000
718x696x70
Parameters
Model No.
OAK-FL-Smart-800W
Light Source
Cree COB
Driver
Meanwell
Power
800w
Luminous Efficiency
170 lm/W
Luminous Flux
136,000 lm
Input Voltage
90~305V AC
Beam Angle
15° /25° /40° /60° /90° /120°optional
Color Temperature
1700~10,000K
CRI
≥80
IP Rating
IP67
Lifespan
>100,000h
Power Factor
≥0.95
Power Efficiency
≥93%
Power Frequency
50~60HZ
Working Temp.
-40 ~ +55°C
MH reference Replacement
2000-4000W
Surface Treatment
Special cooling channel
make sure the heat transfer to the air in different directions
Project References
