OAK-FL-Smart-200W

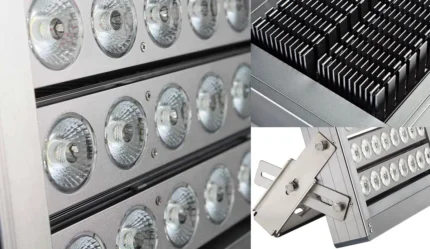

1. High quality LED flood lights with best materials.
By using Cree/Bridgelux COB chips, we can provide the high quality LED lamps and ensure that our lamps can work stably and normally in different conditions.
Built-in Meanwell power supply woth 90-305V AC input
2. 100% customized service for different projects’ requirements.
3. 5 years warranty with 100% after-sales service.
4. Outdoor LED lighting fixtures usually need to withstand rain, wind and lightning for a long time, and the LED is a precise semiconductor component, the chip will absorb moisture and damage the LED, PcB and other components if the LED is damp. So it is very crucial to have a perfect structural waterproof design, which can ensure the LED can work stably for a long time under harsh outdoor conditions.
At present, OAK LED flood lights adopt the technology of structural waterproof and materials waterproof for production.
Structural waterproof-  the deign of light frame can protect the lamp from rainwater.
Materials waterproof- when designing and manufacturing the lamps, we have already set aside potting glue to seal the position of the electrical components and use the glue materials to achieve the waterproofing during assembly.
MN
Power
(W)
Size
(mm)
Efficiency
Beam Angle
(degree)
Color
Temperature
Dimming
Options
OAK-FL-100W-Smart
100
318x255x70
170lm/w
15, 25, 40,
60, 90, 120
2700-6500K
PWM
DALI
DMX
Zigbee
Manual
OAK-FL-150W-Smart
150
318x320x70
OAK-FL-200W-Smart
200
418x320x70
OAK-FL-300W-Smart
300
468x436x70
OAK-FL-400W-Smart
400
568x436x70
OAK-FL-500W-Smart
500
568x501x70
OAK-FL-600W-Smart
600
568x566x70
OAK-FL-720W-Smart
720
668x566x70
OAK-FL-800W-Smart
800
668x631x70
OAK-FL-1000W-Smart
1000
718x696x70
Parameters
Model No.
OAK-FL-Smart-200W
Light Source
Cree COB
Driver
Meanwell
Power
200w
Luminous Efficiency
170 lm/W
Luminous Flux
34,000 lm
Input Voltage
90~305V AC
Beam Angle
15° /25° /40° /60° /90° /120°
Color Temperature
1700~10,000K
CRI
≥80
IP Rating
IP66
Lifespan
>100,000h
Power Factor,
≥0.95
Power Efficiency
≥93%
Power Frequency
50~60HZ
Working Temp.
-40 ~ +55°C
MH reference Replacement
400-1000W

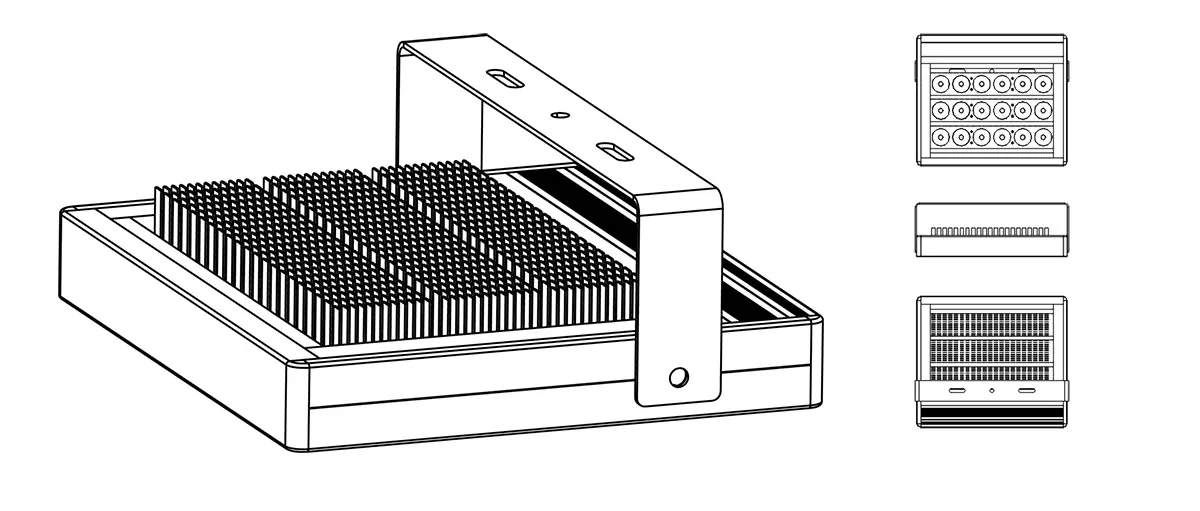

Surface Treatment

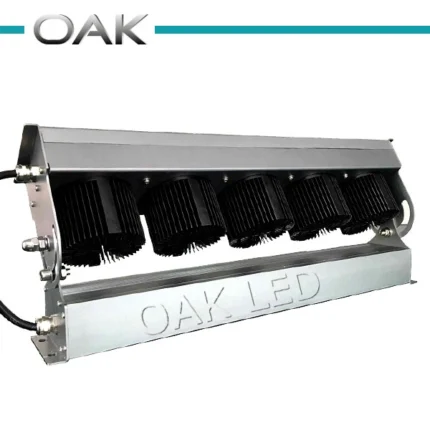

Special cooling channel
make sure the heat transfer to the air in different directions

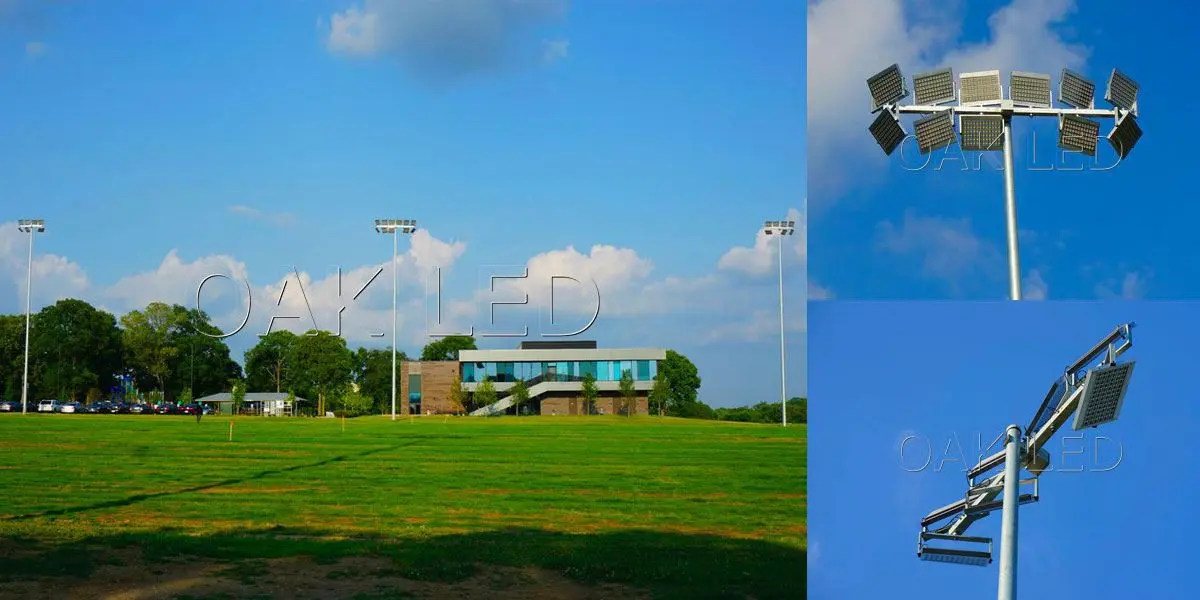

Project References
